Novel and disappearing climates in the global surface ocean from 1800 to 2100

Article | Open Access | Published: Katie E. LotterhosÁki J. Láruson & Li-Qing Jiang







Abstract

Marine ecosystems are experiencing unprecedented warming and acidification caused by anthropogenic carbon dioxide. For the global sea surface, we quantified the degree that present climates are disappearing and novel climates (without recent analogs) are emerging, spanning from 1800 through different emission scenarios to 2100. We quantified the sea surface environment based on model estimates of carbonate chemistry and temperature. Between 1800 and 2000, no gridpoints on the ocean surface were estimated to have experienced an extreme degree of global disappearance or novelty. In other words, the majority of environmental shifts since 1800 were not novel, which is consistent with evidence that marine species have been able to track shifting environments via dispersal. However, between 2000 and 2100 under Representative Concentrations Pathway (RCP) 4.5 and 8.5 projections, 10–82% of the surface ocean is estimated to experience an extreme degree of global novelty. Additionally, 35–95% of the surface ocean is estimated to experience an extreme degree of global disappearance. These upward estimates of climate novelty and disappearance are larger than those predicted for terrestrial systems. Without mitigation, many species will face rapidly disappearing or novel climates that cannot be outpaced by dispersal and may require evolutionary adaptation to keep pace.



Introduction

Marine ecosystems worldwide are being threatened by an anticipated temperature increase of 1–3 °C1 and a pH drop of 0.3–0.5 units (an acidity increase of greater than 100%)2,3 over the next century due to the uptake of atmospheric carbon dioxide (CO2)4,5,6. The rates of change in atmospheric CO2 over the past century are two-to-three orders of magnitude higher than most of the changes seen in the past 420,000 to 300 million years, suggesting that this challenge may be without precedent for many extant species4,5,6. This rapid rate of environmental change means that by the end of the twenty-first century, large portions of the Earth’s ocean could experience climates not found at present (“novel climates”), and some twentieth century climates may disappear7,8,9.

Despite evidence that some marine species may be able to keep pace with climate change through distribution shifts because of high dispersal potential10,11,12, range shifts no longer become a viable strategy if globally the climate shifts beyond what they can tolerate. Thus, novel climates with no analog in recent evolutionary history may leave species in an “adapt or die” scenario13. In addition, novel climates may cause a reshuffling of communities including novel species associations, community disaggregation, new communities, extinction, and other unexpected ecological surprises7,8,14.

Recently for the global ocean, others have estimated the year that single climate variables (e.g., pH, SST, oxygen) are projected to emerge beyond a historical baseline for a particular location or marine reserve15,16,17. While these kinds of analyses are important, they did not give insight into where novel environmental stresses not recently experienced anywhere on Earth may emerge, nor where historical climates may disappear relative to a global baseline. In addition, these previous studies did not quantify the degree of climate novelty or disappearance in the global ocean since pre-industrial times.

Our study fills these gaps by quantifying the degree of global climate novelty or disappearance for the ocean sea surface, based on the dissimilarity between the multivariate climate normal at a focal geographic location and its nearest analog in the climate normals from the global climate baseline data (Table 1, definitions). We use reconstructed pre-industrial environments and climate change scenarios to map risk of current and future novel and disappearing environments for the global sea surface and discuss their potential ecological impacts. The degree of global novelty is calculated by comparing a later climate normal for each surface ocean gridpoint to a baseline of climate normals for all surface ocean gridpoints in the same hemisphere (N or S) from an earlier time. Gridpoints with a high degree of global novelty are those whose future climate projection lies outside of the present-day climate envelope for that hemisphere. In contrast, the degree of global disappearance is calculated by comparing each gridpoint at an earlier time to a baseline of climate normals for all surface ocean gridpoints in the same hemisphere from a later time (Table 1, definitions). Gridpoints with a high degree of global disappearance are those whose present-day climate lies outside of the future-projected climate envelope for that hemisphere.



Table 1 Definitions for the terms used in this study in alphabetical order.

Unlike on land, where the climate is traditionally described by temperature and precipitation, here we consider ocean climate to be described by temperature and carbonate chemistry (Table 1, definitions). Carbonate chemistry is an important aspect of ocean climate because it describes the availability of biologically important carbon ions (CO32−) that many marine fauna use to make shells or bone. We calculated the degree of global novelty or disappearance based on seasonal temperature, pH, and the saturation state of aragonite: a form of calcium carbonate form found in corals, bivalves, and many other marine organisms18,19,20. These three variables describe different aspects of the ocean climate. For instance, temperature is known to be an important driver of biodiversity in the marine environment21 through its influence on the biochemical kinetics of metabolism22, thermal tolerance limits10, and the sensitivity of corals to warming23. Saturation state and pH are interrelated and both decrease with increasing CO2, but have distinct effects on organisms. Declines in pH can alter acid–base balance in both vertebrates and invertebrates24, leading to for example behavioral changes in marine fish due to changes in regulation at neurotransmitters25 (although behavioral changes have been debated, see Clark et al.26). On the other hand, saturation state is the ratio of the ionic product, [Ca2+][CO32−], to its saturated value. As saturation state decreases, shell development becomes increasingly constrained by kinetics and energetics27, although the specifics depend on the species. In marine bivalves, larval shell development and growth are dependent on seawater saturation state, and not on carbon dioxide partial pressure or pH28. Note that because saturation state increases slightly with temperature while pH decreases quickly with temperature, saturation states do not scale linearly with pH and each of these variables represent different aspects of ocean climate3.

Data for this analysis was created by combining a recent observational carbon dioxide data product, the 6th version of the Surface Ocean CO2 Atlas (SOCAT, 1991–2018, ~ 23 million observations), with a robust Earth System Model29 to provide temporal trends at individual locations of the global ocean surface for aragonite saturation state, SST, and pH from 1800–2100. Using these observation/model hybrid ensembles, we calculated the degree of global novelty or disappearance30 among the pre-industrial early nineteenth century (reconstructed), the late twentieth century, and twenty-first century projections under different emissions scenarios. We compared the nineteenth century pre-industrial reconstructed climate to the late twentieth century climate, and the late twentieth century climate to the late twenty-first century climate for emissions scenarios RCP 4.5 (“stabilization” emission response scenario where emissions peak in 2050, followed by slowed increase) and RCP 8.5 (worst case “business as usual” scenario where emissions peak in 2100, followed by slowed increase). Over a decade of CO2 emissions since 2005 show that the RCP 2.6 scenario is too low to adequately represent the future atmosphere CO2 level31,32,33. Consequently, the RCP 4.5 and RCP 8.5 scenarios are now the plausible low-end and high-end concentration pathways.



Overview of metrics that reflect climate risk

We estimate the degree of global novelty or disappearance using the Mahalanobian dissimilarity metrics developed by Mahony et al.30. These metrics are an improvement over the standardized Euclidean distance7 because the latter is susceptible to variance inflation due to correlations in the raw variables and does not account for the effect of the number of variables on the statistical meaning of distance. Following Mahony et al.30, we estimated two metrics that reflect climatic risk: (i) Mahalanobis distance (MD) (a multivariate distance) between a single gridpoint at one point in time and its closest analog in the global baseline pool from another timepoint, and (ii) the transformation of MD into a standardized metric called sigma dissimilarity (σD) that can be interpreted as the number of standard deviations of interannual climate variability (ICV) at the focal station (see Table 1, definitions). The global climate baseline data includes climate normals from widespread geographic locations in the hemisphere of the focal station (e.g., northern or southern hemisphere) at a specific point of time. Following the framework outlined by Mahony et al.30, we interpret 2–4σD to represent a moderate degree of global novelty/disappearance (corresponding to the 95th percentile of the baseline) and greater than 4σD to represent an extreme degree of global novelty/disappearance (corresponding to the 99.994th percentile of the baseline) (see Table 1, definitions). As a statistical measure of the departure from historical variability, sigma dissimilarity provides an intrinsically meaningful metric of the general ecological significance of climatic dissimilarities30.

We illustrate the calculation of sigma dissimilarity with hypothetical data in Fig. 1 for two hypothetical climate variables, X1 and X2. In the left column of Fig. 1, the grey points represent the global climate baseline data, which are shaded only for illustration. To calculate the degree of dissimilarity, σD, a principal components analysis is performed on the global climate baseline data in the left column of Fig. 1 and standardized by the multivariate interannual climate variability (ICV, magenta circles in Fig. 1) experienced at the focal station (blue point in Fig. 1), resulting in the transformed data in the right column of Fig. 1 (see Table 1 for definitions). The different shadings of grey in the global climate data are only used to help to visualize this transformation. In this standardized principal components space, the degree of dissimilarity is then calculated as the number of standard deviations between the climate normal at the focal station (blue point in Fig. 1) and the climate normal of its nearest neighbor (e.g., closest analog) in the global climate baseline data (green diamond in Fig. 1). Via the standardization, the degree of dissimilarity calculation incorporates the amount of ICV for the focal station.



Figure 1
figure1

Illustration of climate novelty calculations. Hypothetical data for two focal geographic locations whose future climate normal (blue point, a novel climate in this case) is being compared to a global baseline of present-day climate normals (grey dots). The raw data (left column, for hypothetical environmental variables X1 and X2) is subject to a principal components analysis and then standardized by the multivariate interannual climate variability (ICV, pink circles) at the focal station, which results in the standardized data in the right column (arrows show how the loadings of environmental variables X1 and X2 in PC space depend on the ICV at the focal location). In the standardized PC space (right column), the degree of novelty (σD-Novelty) is calculated as the number of standard deviations between the climate projection at the focal station (blue point) and its nearest neighbor (green diamond) in the present-day global climate baseline data (grey points, which are shaded only to help visualize the standardization). (A) The novelty calculation for the future climate at a focal location that experiences low ICV is calculated to be extremely dissimilar to the global baseline. (B) The novelty calculation for the future climate at a focal location that is projected to be the same mean future climate as A, but experiences higher ICV, is calculated to have low dissimilarity to the global baseline. Note how the different degrees of ICV for X1 and X2 affect the data transformation into PC space. The degree of disappearance (σD-Disappearance) for a focal station is analogous to the grey points representing the global baseline for possible future climates, and the blue point representing today’s climate at the focal station. For further explanation see “Overview of metrics that reflect climate risk” section in the main text.

Figure 1 illustrates the calculation for the degree of global novelty for a future climate projection at a focal station compared to a present-day climate. A novel climate at a focal station occurs when a future climate normal at that location does not currently exist in the present-day baseline of climate normals from geographic locations across the same hemisphere (global climate baseline data, grey points in Fig. 1and is projected to be outside that historically experienced (e.g., the ICV) at the focal station. After transformation of the raw data (Fig. 1 left column, for hypothetical environmental variables X1 and X2) with principal components and standardization by the ICV (resulting in the data in Fig. 1 right column, arrows show how the loadings of environmental variables X1 and X2 in PC space depend on the ICV), the degree of global novelty, σD-Novelty, is an estimate of the number of standard deviations between the future climate normal at the focal station (blue point) and the climate normal of its nearest neighbor (green diamond) in the present-day global climate baseline data (grey points, which are shaded only to help visualize the standardization)30. In the principal components space (right side of Fig. 1), the nearest neighbor (green diamond in Fig. 1) is the geographical location in the global baseline climate data whose present-day climate normal is most similar to that of the focal station’s future projected climate normal (e.g., closest analog).

In comparing Fig. 1A,B, the future climate predicted for the focal station (blue dot) and the nearest neighbor (green diamond) is the same for both examples, but the ICV (magenta points) historically experienced at the focal station is low (in A) or high (in B). When the focal geographical location experiences low ICV, the degree of global novelty (σD-Novelty) to its nearest neighbor is large (Fig. 1A). When the focal geographical location experiences high ICV, the degree of global novelty (σD-Novelty) is low (Fig. 1B). Thus, when all else is equal, σD varies inversely with ICV. This is intuitive in the sense that a site that experiences a lot of climate variability would not be expected to be as negatively impacted by climate change as a site that experiences less climate variability.

Figure 1 can also be used to illustrate the degree of climate disappearance. A disappearing climate at a focal station is one that exists in the present-day, but is projected to no longer exist in the global baseline of future-time climates from widespread geographic locations. The degree of global disappearance (σD-Disappearance) for a focal geographic location is analogous to the grey points representing the global baseline data for projected future climate normals and the blue point representing today’s climate normal at the focal station. The magenta points still represent the ICV at the focal station, which is assumed to be constant through time. The σD-Disappearance is based on the number of standard deviations between the current climate normal at the focal station (blue point) and the climate normal for its nearest neighbor in the future-time climate (green diamond).



Results

Overview of model data

The model data has been previously published3, so here we only briefly summarize the patterns that are helpful in interpreting the multivariate analysis of global novelty and disappearance. The relationship between saturation state, temperature, and pH in the present-day sea surface is shown in Fig. 2. Because saturation state decreases with temperature, it does not scale linearly with pH and each of these variables represent different aspects of ocean climate. The local interannual climate variability that is used in the standardization for the degree of global novelty/disappearance calculations is typically lowest for all variables at the equator (Fig. 3). The temperate zones in the northern hemisphere typically have a more variable local ICV than temperate zones in the southern hemisphere, and the Arctic experiences lower saturation states and warmer conditions than Antarctic (Fig. 3).

Figure 2
figure2

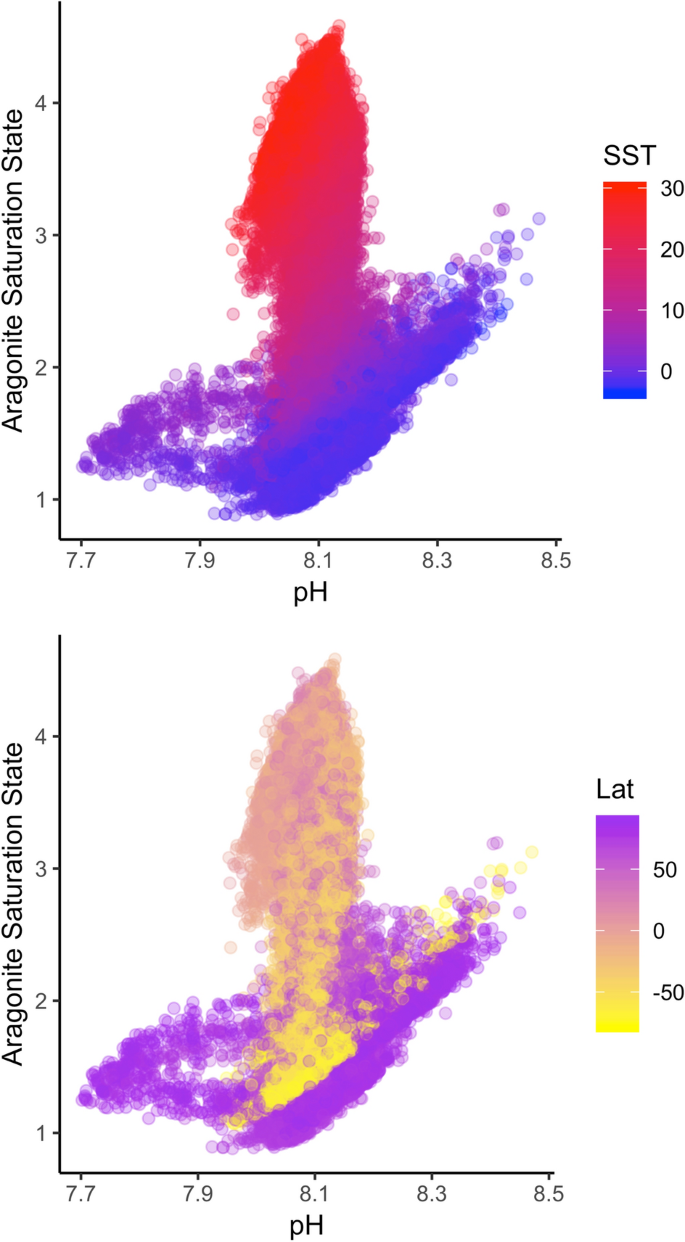

Distribution of pH versus aragonite saturation state in the global ocean. The points are colored by sea surface temperature (SST, top) or latitude (Lat, bottom).

Figure 3
figure3

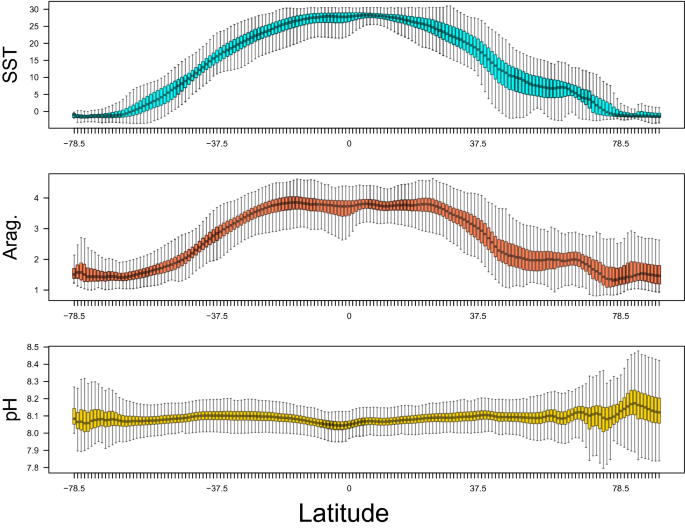

Interannual climate variability as a function of latitude. Boxplots of the interannual climate variability (ICV) used for the degree of climate novelty/disappearance as a function of latitude. The green area represents the 0.25 and 0.75 quantiles (outliers were excluded). SST sea surface temperature, Arag aragonite saturation state.

Between 1800 and 2000, the shift in the individual climate variables as a function of latitude shows a slight temperature increase at the equator and an ocean-wide slight drop in aragonite saturation state (Fig. 4 left column). Between 2000 and 2100, these shifts are projected to become larger under RCP 4.5 (Fig. 4 middle column) and extreme under RCP 8.5 (Fig. 4 right column).

Figure 4
figure4

Shifts in climate variables as a function of latitude. Univariate climate change for sea surface temperature (SST, top row), aragonite saturation state (Arag, middle row), and pH (bottom row), as a function of latitude for different century comparisons. The specific comparison is described in the title of each panel.

How these individual climate shifts correspond to the multivariate emergence of novel and disappearing climates is visualized in Fig. 5 (for the northern hemisphere) and Fig. 6 (for the southern hemisphere). In the northern hemisphere, the present-day undersaturated and low pH conditions in the Arctic are projected to become more common at temperate latitudes under RCP 4.5 and RCP 8.5; note that for temperate latitudes these conditions are unlikely to be globally novel because they are already common in the Arctic (Fig. 5 middle and right columns, note overlap in 2000 and 2100 envelopes at low SST). In the southern hemisphere under RCP 8.5 projections, there is almost no overlap between current and projected climate envelopes across all latitudes (Fig. 6 right column). While these figures are useful for comparing climate envelopes, note that they do not give much insight into the degree of global novelty for a specific location, because that degree depends on the amount of historical ICV at that location.

Figure 5
figure5

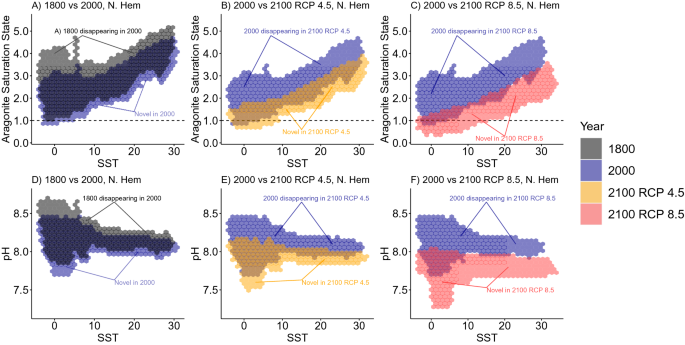

Shifts in climate envelopes for the northern hemisphere. We compared the distribution of sea surface climate normals between different centuries in the northern hemisphere. Aragonite saturation state (top row) or pH (bottom row) are plotted against sea surface temperature (SST). For specific comparisons see the titles in each panel. When aragonite saturation state falls below 1.0 (horizontal dotted line), the calcium carbonate polymorph that some marine animals use to make their shells will dissolve into seawater.

Figure 6
figure6

Shifts in climate envelopes for the southern hemisphere. We compared the distribution of sea surface climate normals between different centuries in the southern hemisphere. Sea surface temperature (SST) is plotted against aragonite saturation state (top row) or pH (bottom row). For specific comparisons see the titles in each panel. When aragonite saturation state falls below 1.0 (horizontal dotted line), the calcium carbonate polymorph that some marine animals use to make their shells will dissolve into seawater.

Degree of global novelty and disappearance between 1800 and 2000

Compared to 2000, 12.4% of the modeled 1800 gridpoints had moderate degree of global disappearance and 0% had an extreme degree of global disappearance (Table 2, Fig. 7A for MD-Disappearance and Fig. 8A for σD-Disappearance). Similarly, since 1800, 3.7% of the gridpoints from 2000 had a moderate degree of global novelty and 0% had an extreme degree of global novelty (Table 3, Fig. 7B for MD-Novelty and Fig. 8B for σD-Novelty). Current globally disappearing climates are trending in the Indian Ocean, the southwest Pacific, and tropical Atlantic (Fig. 7A), whereas current globally novel climates are emerging in the equatorial Pacific (Fig. 7B). The relatively small climate shift since 1800 can be visualized by the substantial overlap between the 1800 and 2000 climate envelopes for temperature and aragonite saturation state and temperature and pH (Figs. 456).

Table 2 Percent of ocean surface estimated to experience different degrees of global disappearance.
Figure 7
figure7

Map of climate risk based on Mahalanobis distance. A map of the multivariate distance between the climate normal for each gridpoint at one point in time and its closest analog in the global climate baseline data at another point in time (Mahalanobis distance, MD). The MD,Disappearance is the multivariate distance between the climate normal of a gridpoint at an earlier time to its closest analog in the global baseline climate normals at a later time (left column). The MD,Novelty is the multivariate distance between the climate normal of a gridpoint at a later time to its closest analog in the global baseline climate normals at an earlier time (right column). For specific comparisons see the titles within each panel.

Figure 8
figure8

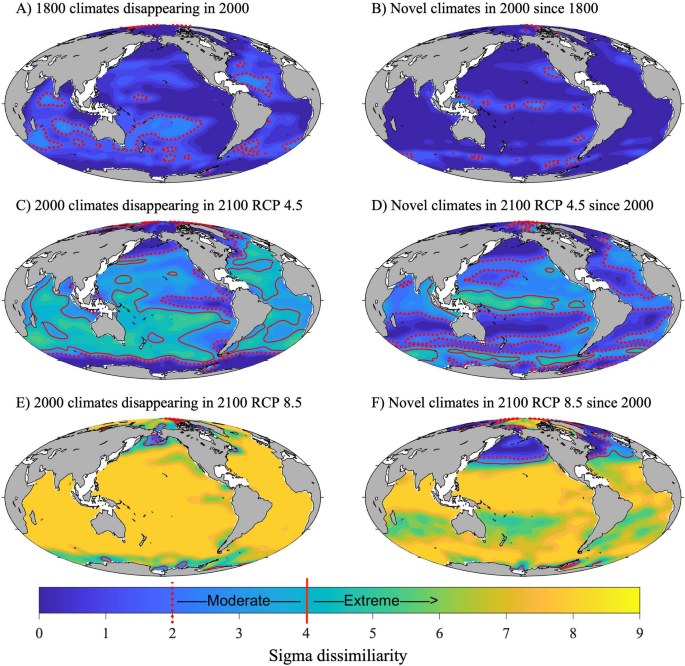

Map of climate risk based on sigma dissimilarity. The degree of global disappearance or novelty for the global ocean. Sigma dissimilarity (σD) represents the number of standard deviations of the local interannual climatic variability (ICV) at a gridpoint at one point in time from its closest analog in a global pool of data at a different point in time. The degree of global disappearance (σD-Disappearance) is the dissimilarity between the climate normal of a gridpoint at an earlier time to its closest analog in the global baseline climate normals at a later time (left column). The degree of global novelty (σD-Novelty) is the dissimilarity between the climate normal of a gridpoint at a later time to its closest analog in the global baseline climate normals at an earlier time (left column). For specific comparisons see the titles within each panel. The largest σD that could be calculated with decimal precision was 8.29σ. Following30, a moderate degree of novelty or disappearance is given by 2 < σD < (corresponding to the the 95th percentile of local ICV) and an extreme degree is given by σD > 4 (corresponding to the the 99.994th percentile of local ICV).

Table 3 Percent of ocean surface estimated to experience different degrees of global novelty.

Degree of global novelty and disappearance between 2000 and 2100

A substantial proportion of the sea surface is projected to experience a moderate-to-extreme degree of global disappearance between 2000 and 2100 under RCP 4.5 and RCP 8.5. By 2100, between 35.6% (RCP 4.5) and 95% (RCP 8.5) of the sea surface is predicted to experience an extreme degree of global disappearance (Table 2, Fig. 7C,E for MD-Disappearance and Fig. 8C,E for σD-Disapperance). Locations with climates that are projected to experience the most extreme degree of global disappearance are primarily located in the tropics and the temperate region of the southern hemisphere (Figs. 7C,E and 8C,E), and become more widespread under RCP 8.5 (Fig. 8E).

A substantial proportion of the sea surface is also projected to experience a moderate-to-extreme degree of global novelty between 2000 and 2100 under RCP 4.5 and RCP 8.5. By 2100, between 10.3% (RCP 4.5) and 81.9% (RCP 8.5) of the sea surface is predicted to experience an extreme degree of global novelty (Table 3, Fig. 7D,F for MD-Disappearance and Fig. 8D,F for σD-Disapperance). Locations with climates that are projected to experience the most extreme degree of global novelty are primarily located near the equator, in the Arctic, and in the sub-polar region of the southern hemisphere (Figs. 7D,F and 8D,F), and become more widespread under RCP 8.5 (Fig. 8F).

The non-intuitive result that a larger proportion of sea surface climate will have a more extreme degree of global disappearance than degree of global novelty is caused by the way the climate envelope shifts in the northern hemisphere. A high density area of the temperature-pH envelope in 2000 does not overlap with the temperature-pH envelope in 2100 (e.g., the former would have a high degree of global disappearance). However, a high density area of the temperature-pH envelope in 2100 overlaps with some relatively rare locations in 2000 that have low temperature and low pH (thus the lower degree of global novelty). Consequently, the multivariate distance from a point at the end of the twentieth century to its nearest analog at the end of the twenty-first century (degree of global disappearance) is more often larger than the multivariate distance from a point at the end of the 21th century to its nearest analog at the end of the twentieth century (degree of global novelty).



Comparing model ICV with real data

If ICV is underestimated in our dataset, then the predictions for MD and σD shown in Figs. 7 and 8 are overestimated. In comparing projections from the model to measured values from long-term ocean monitoring time series, we found that variation in temporal field station measurements of both SST and pH was lower in the tropics (as represented by Hawaiʻi) than at similar latitudes (between 20° N and 25° N) in the model (Fig. 9), indicating that our novelty projections for tropical regions (which are already quite large) may be underestimated. Conversely, we found that variation in field station measurements of both SST and pH was higher in the temperate zone (represented by Maine and New Hampshire) than at similar latitudes (between 40° N and 45° N) in the model (Fig. 9), indicating that our novelty projections for this region (which were among the lowest observed) may be overestimated. In summary, the qualitative prediction that equatorial regions will experience an extreme degree of global novelty and northern temperate regions will not experience globally novel conditions is robust given the direction of the slight biases in the ICV.

Figure 9
figure9

Comparison of ICV for observational versus model data. We compared long-term ocean field site measurement standard deviations in sea surface temperature (A) and pH (B) to model standard deviations at representative latitudes and longitudes. The solid lines represent the average annual standard deviation of the field measured time series data, while the dotted line represents the average standard deviation of the model in the same region. The observational data included the tropical Hawaii Ocean Time-series (HOTS), the temperate North Atlantic datasets from the University of New Hampshire Coastal Marine Laboratory and the National Oceanic and Atmospheric Administration mooring NH_70W_43N (CML/NOAA), and Boothbay Harbor, Maine (BBH).

Discussion

Our analysis did not predict that any modeled gridpoints on the ocean surface have experienced an extreme degree of global disappearance or novelty between 1800 and 2000. However, between 2000 and 2100 under Representative Concentrations Pathway (RCP 4.5 or 8.5) projections, our analysis predicted that a substantial proportion of the sea surface may experience an extreme degree of global novelty and disappearance relative to the global climate baseline data. The upward estimates in our analysis are larger than those projected for global novel and disappearing climates on land7, and are due in part to the ocean surface environment being two to three orders of magnitude less variable than that on land34. Under both RCP 4.5 and RCP 8.5, the more extreme degree of global novelty near the equator and in the sub-Antarctic is driven in part by the lower interannual climatic variability (ICV) at these locations. In contrast, the low degree of global novelty in northern temperate regions stems in part from the higher ICV at those latitudes.

In this study we estimated the degree of multivariate novelty of future climates and disappearance of extant climates relative to global climate baseline data for the sea surface, which complements previous studies for the global ocean based on local rates of climate change15,16. The local versus global metrics provide important, and different, information about the vulnerability of populations to climate change. Local climate change at a specific location, relative to the historical variability at that location, may reflect the extent to which the species composition will shift as species track shifting climate envelopes with dispersal. The degree of global climate novelty at a location, however, may indicate how stressful novel conditions will be for all species. In contrast, the degree of global climate disappearance for a location may represent how hard it might be for species who are well adapted to the climate at that location to find a similar climate in the future.

While dispersal limitations greatly increase the risk that species will experience the loss of extant climates or the occurrence of novel climates7, the high dispersal potential of marine organisms with a planktonic larval stage has been discussed as a trait that will allow them to keep pace with climate change15. Recent studies have found that marine species are able to track shifting climates10,11. Our study shows that the majority of these climate shifts are not novel (e.g., have an analog) since the early nineteenth century. In other words, although some climate variables, such as pH, have already emerged beyond historical baseline for a particular location15, our study shows these climates are not novel from a global perspective and may facilitate tracking via range shifts. However, if a majority of the ocean surface climate disappears and is replaced by novel climates with no recent analog by the end of the twenty-first century, the optimal environment for many species may not exist and dispersal will not help these species keep pace with environmental change. Instead, species may need to keep pace via evolutionary adaptation, plasticity and acclimatization, and/or epigenetic processes35.

Evidence for adaptive capacity is emerging, although examples are still few. Phytoplankton have been shown to evolve rapidly in response to increased pCO213, due in part to their short generation times and large population sizes. The concerns remain, however, that adaptive variation for high pCO2 is limited in most species36, that high pCO2 can diminish the heritability of larval traits37, that marine species live close to their upper thermal limits38, and that the unprecedented rate of change will be too fast relative to the long life span of many marine species for adaptive evolution to occur before their lineages go extinct39. Yet, a growing number of studies have found transgenerational plasticity of marine invertebrates and vertebrates in response to increased temperature or pCO240,41, suggesting that non-genetic or epigenetic processes could play a major role in acclimatization—although there are many knowledge gaps in the molecular mechanisms that underlie such processes42.

The degree of global novelty or disappearance for a specific location is relative to the amount of variability historically experienced at a location. We found that the model data tended to have lower ICV than time series data for high latitudes, and higher ICV than time series data for low latitudes, indicating that our estimates of novelty may be overestimated for high latitudes (which are already the lowest novelty) and underestimated for low latitudes (which are already the highest novelty). Therefore, the main conclusion—that the equator and sub-Antarctic regions will experience the highest degree of global novelty and northern temperate regions the lowest degree of global novelty—is robust to the direction of bias we observed in the ICV. Note, however, that our analysis did not include coastal areas, which are known to experience large fluctuations in temperature and carbonate chemistry due to upwelling processes and freshwater input43,44. Including coastal areas in this analysis was not possible due to the paucity of data, but would be an important avenue for future research.

Our projections may be conservative because there are other important aspects of seawater chemistry, food availability, and ocean dynamics that will be altered by climate change but were not considered by our model. For example, enhanced stratification caused by warming temperatures can have a range of indirect effects, including reduced nutrient supply to phytoplankton at low latitudes, but a more favorable light regime for these organisms at high latitudes45,46. Primary productivity may also be altered in coastal areas where productivity is driven by the seasonal upwelling of deep, nutrient-rich water. Climate change is altering the intensity, timing and spatial structure of upwelling dynamics, thus reshaping patterns of primary productivity47,48,49,50. Warming also reduces the solubility of oxygen, and hypoxic conditions have been shown to have negative effects on many marine organisms51. Moreover, warming drives sea ice melt and systematic freshening of polar areas52.

Including multiple stressors into calculations of MD and σD is an important avenue for future research. In our analysis, reconstructed and projected carbonate chemistry for the global ocean was based on the GFDL-ESM2M model that is often considered as the most reliable model for the carbonate parameters (Dunne et al. 2012, 2013). Other models with different variables (e.g. sea ice, salinity, dissolved oxygen, nutrients, etc.) could be analysed in the same way and this would allow an estimate of the uncertainty in the results. The sensitivity of the results to the choice of model is an important next step towards producing more robust estimates of novelty and disappearance.

If the projections of climate novelty and disappearance reported here are accurate, the cascading effects on marine ecosystems and communities could be substantial. Areas such as the IndoPacific, which are projected to experience the most extreme degree of climate novelty and disappearance, are critical hot spots for endemic biodiversity and coral reefs53,54,55. Coral reefs are particularly vulnerable to bleaching of their zooxanthellae symbionts, which can result from minor increases in temperature50. In these areas, elevated risks of ecological surprises, including extinction, are likely.

Shifting climate niches only represent one aspect of the ecological risks associated with climate change. Modified energy flows and biogeochemical cycles, multiple stressors, shifts in phenology, climate-mediated invasions, climate-driven disease outbreaks, and asynchronies between prey availability and predator demand are some of the other processes that will contribute to shifting ecosystem distributions and the services that they provide to society50,56,57. Species will vary in their ability to keep up with multivariate environmental transitions into no-analog climates, which will promote the formation of no-analog species assemblages and present many ecological surprises. Highly novel marine ecosystems will challenge the predictive ability of eco-evolutionary models and present many challenges to the preservation of marine biodiversity over the next century.



Methods

Global ocean reconstructed and projected data

Seawater carbonate data for pH and aragonite saturation state calculation in this study were extracted from the 6th version of the Surface Ocean CO2 Atlas (SOCATv6, 1991–2018, ~ 23 million observations) at a spatial resolution of 1 × 1 degree58. Data without quality control flags of A or B (uncertainty of fugacity of carbon dioxide, fCO2 < 2 µatm) were omitted. Silicate and phosphate values for all SOCATv6 stations were extracted from the gridded GLODAPv2 climatologies59. Total alkalinity (TA) was then calculated with the updated Locally Interpolated Alkalinity Regression (LIARv2) method60. pH on the total hydrogen scale (pHT) and aragonite saturation state were calculated from in-situ temperature, salinity, hydrostatic pressure, dissolved inorganic carbon (DIC) concentration, TA, silicate and phosphate. Dissociation constants were taken from the literature for carbonic acid61, bisulfate (HSO4)62, and hydrofluoric acid (HF)63. Total borate concentration equations were the same as reported by Uppström64. A MATLAB version65 of the CO2SYS program66 was used for analysis. Uncertainties of the methods using the CO2SYS errors program67 are estimated to be 0.01 for pH and 0.13 for aragonite saturation state, assuming uncertainties for SST, salinity, TA, and DIC of 0.01, 0.02, 6 µmol kg−1 and 4 µmol kg−1, respectively.

The calculated pHT and aragonite were then adjusted from their sampling year to 2000 assuming that: (a) sea surface pCO2 increases at the same rate as atmospheric mole fraction of carbon dioxide (xCO2), as documented by the IPCC Fifth Assessment Report 5 (AR5)68, (b) SST increases at the rate described by NOAA’s Extended Reconstructed Sea Surface Temperature (ERSST) v569, and (c) salinity and TA remain constant. Surface pHT and Revelle Factor were further adjusted from their sampling month to all 12 months of 2000 assuming that: (a) sea surface pCO2 follows the same annual cycle as documented by the LDEO database70, (b) sea surface temperature (SST) in all months of 2000 can be approximated by the 1995–2004 average monthly SST climatology from the World Ocean Atlas71 and (c) salinity and TA remain constant.

Surface ocean pHT and aragonite saturation state in all 12 months for all decades from 1770 to 2100 under the IPCC scenarios (RCP 4.5 and RCP 8.5) were reconstructed or projected assuming that sea surface pCO2 and SST increase at the rate simulated by the GFDL-ESM2M model run with these pathways2,29. Spatial mapping was conducted using a Matlab version (Divand Software) of the Data-Interpolating Variational Analysis (DIVA)72. For more detail, please refer to Jiang et al.3.



Estimating global climate novelty or disappearance

For each location, the metrics we estimate are based on dissimilarity between the projected multivariate (past or future/projected) climate change at a given location and its nearest analog in a global set of “baseline” data. To estimate the range of possible degrees of novelty or disappearance, we compared the predictions for a global baseline and a hemisphere-restricted baseline (e.g., northern or southern hemisphere). An important feature of our calculations is that they (i) are performed in multivariate space, and (ii) take into account the interannual climatic variability (ICV) at that location. For all analyses, climate normals were calculated based on 40-year means of each climate variable and ICV was based on model data for 1965–2004 (see Table 1 for definitions). Because the ICV did not change substantially through time in the model data, our results were not sensitive to the span of years chosen to represent the ICV.

Aragonite saturation state was log10-transformed because it was a ratio variable: it is limited at zero and proportional changes are meaningful (C. R. Mahoney, pers. comm.). This transformation makes the difference between 1 and 2 the same significance as the difference between 0.5 and 1 (doubling vs. halving, i.e., proportional scaling). In practice, temperature doesn’t need to be log-transformed because it doesn’t vary across orders of magnitude, and in our case pH is already a log-scaled variable. Nevertheless, our analysis was not sensitive to whether or not aragonite saturation state was log-transformed.

The degree of global novelty is calculated by comparing a later climate normal for each ocean gridpoint to all earlier climate normals for the global baseline data. We performed three planned comparisons for the degree of climate novelty as measured by MD-novelty and σD-novelty (note we use the reference period 1965–2004 ICV for all analyses): (i) novelty of the late twentieth century ocean surface (1965–2004) compared to pre-industrial early nineteenth century (1795–1834) reconstructed climate; (ii) novelty of the late twenty-first century climate under RCP 4.5 (2065–2104) compared to late twentieth century; and (iii) novelty of the late twenty-first century climate under RCP 8.5 (2065–2104) compared to late twentieth century.

Conversely, the degree of global disappearance is calculated by comparing an earlier climate normal for each ocean gridpoint to a later pool of climate normals for the global baseline data. High values indicate places where climates may disappear; i.e., they have no close counterpart anywhere in the later timepoint. We performed three planned comparisons for the degree of climate disappearance as measured by MD-disapperance and σD-disappearance: (i) disappearance of climates from early nineteenth century pre-industrial times (1795–1835 reconstructed climate) in the late twentieth century ocean (1965–2005); (ii) disappearance of late twentieth century climates by the late twenty-first century under RCP 4.5 (2065–2105); and (iii) disappearance of twentieth century climates by the late twenty-first century under RCP 8.5 (2065–2105).

Values of σD higher than ~ 8 were difficult to estimate due to the high decimal precision required to estimate probability in the extreme tail of the chi distribution; in these cases σD was set to a value of 8.29 σ (the maximum value that could be calculated given decimal precision). We created maps of MD and σD in Matlab R2021 Version (code available in repo).



Comparing ICV between model projections and real data

Because of the sensitivity of the degree of global novelty/disappearance calculations to the ICV (see An overview of global climate novelty and disappearance calculations), we wanted to ensure the ICV that we used from the model data were similar to those observed in long-term ocean time series. We were particularly concerned whether ICV might be underestimated in the model data, because that would bias our estimates of MD and σD upwards. To explore whether ICV in the model projections were lower or greater than that observed in long-term ocean time series, and to address some of the limitations due to the coarse grid of global models, we compared SST and pH standard deviations from the model to those from long-term ocean monitoring time series in the tropical and temperate zones.

The model output is the predicted climate variable for that ocean gridpoint for each month, and it is calculated every decade. The standard deviation of the modeled data is based on the monthly data for each year that data is available. The observational data, however, is collected continuously across an entire year. The standard deviation of the observational data is based on this continuous data for each year that data is available.

Real measurements of SST and surface pH were downloaded from Hawaii Ocean Time Series73, and from the University of New Hampshire Coastal Marine Laboratory74; SST was also acquired from Boothbay Harbor75; and additional pH measurements from the National Oceanic and Atmospheric Administration mooring NH_70W_43N (NOAA)76. For regional comparisons, the tropical central Pacific (HOTS) dataset was compared to model data for values between latitude 20° N and 25° N, and longitude 160° E and 130° W, and the temperate North Atlantic (UNH_CML, BBH & NOAA) data were compared to model data for values between latitude 40° N and 45° N, and longitudes 40° W and 70° W. For the time series data, years in which measurements were not sampled continuously across both winter and summer months were omitted. Yearly standard deviations of both SST and pH for the observational and model data were calculated and compared in R.



Data availability

Code and data for reproducing the results can be found at the Dryad repository: Data from: Novel and disappearing climates in the global surface ocean from 1800 to 2100 (doi:https://doi.org/10.5061/dryad.ht76hdrgb).
